Description:

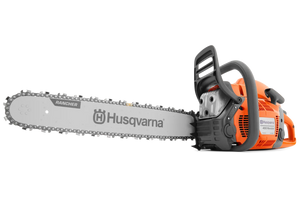

For the gold standard in workhorse chainsaws, trust the Husqvarna 455 Rancher®. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And the ergonomic design with LowVib® technology make this saw comfortable to use, even in demanding conditions.

Features:

• Powerful and Tough Rancher® Series: Robust gas chainsaw delivering superior performance.
• Powerful and Efficient X-TORQ® Engine: Engine designed to cut emissions and reduce fuel consumption.
• LowVib® Technology: Effective dampeners absorb vibration, reducing strain on the user's arms and hands.
• Smart Start® Technology: Engine and starter designed for easy and fast starting with minimum effort.
• Quick Start with Air Purge: Air purge removes air from carburetor and fuel system for easy starting.
• Air Injection™ Technology: Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter, improving engine life.
• Three-Piece Crankshaft: Forged three-piece crankshaft provides maximum durability for tough jobs.
• Inertia-Activated Chain Brake: Reduces the likelihood of injury due to kickback.
• Quick-Release Air Filter: Easily remove and replace the filter after cleaning.
• Side-Mounted Chain Tensioner: Provides easier access to the chain tensioning device.
• Adjustable Oil Pump: Allows customization and control of oil flow to meet specific needs.
• Felling Marks: Dedicated marks for increased felling precision.
• No Oil at Idle: Chain oil pump disengages when the engine is idling to reduce oil consumption and mess.
• Separate Choke/Stop Switch Controls: Stop switch automatically resets when the choke is pulled out to prevent accidental flooding.
• X-CUT® Chain: Exceptionally sharp and durable chain.
• Decompression Valve: Reduces cranking effort for easier starting.

Specification:

• Product Name: 20", 3/8", X-cut 1.3 mm, Rancher Bar
• SKU: 970 61 32-60

Engine:

• Cylinder displacement: 55.5 cm³
• Output shaft power: 3.5 hp
• Torque, max: 3.2 Nm
• Torque, max. at rpm: 6,600 rpm
• Clutch engagement speed (±120): 3,900 rpm
• Electrode gap: 0.02 in
• Idling speed: 2,700 rpm
• Ignition module air gap: 0.01 in
• Maximum power speed: 9,000 rpm
• Oil pump capacity, max: 17 ml/min
• Oil pump capacity, min: 6 ml/min
• Oil pump type: Automatic
• Spark Plug: NGK BPMR7A, Champion RCJ7Y

Equipment:

• Recommended bar length, min: 13 in
• Recommended bar length, max: 24 in
• Bar length: 50 cm (20 in)
• Sprocket type: Spur 7
• Chain type: S83G
• Pitch: 3/8"

Dimensions:

• Weight (excl. cutting equipment): 13.2 lbs

Sound and Noise:

• Sound pressure level at operator's ear: 104 dB(A)
• Sound power level, guaranteed (LWA): 114 dB(A)
• Sound power level, measured: 112 dB(A)

Vibration:

• Equivalent vibration level (ahv, eq) rear handle: 6.9 m/s²
• Equivalent vibration level (ahv, eq) front handle: 3.8 m/s²

Lubricant:

• Oil tank volume: 0.7 US pint
• Lubricant type (Engine): Husqvarna 2 stroke or equivalent at 50:1

Emission:

• Exhaust emissions (CO₂ EU V): 893 g/kWh
